Pressboard PSP3052 (Transformer Board PSP3052)

Pressboard PSP3052 (Transformer Board PSP3052)

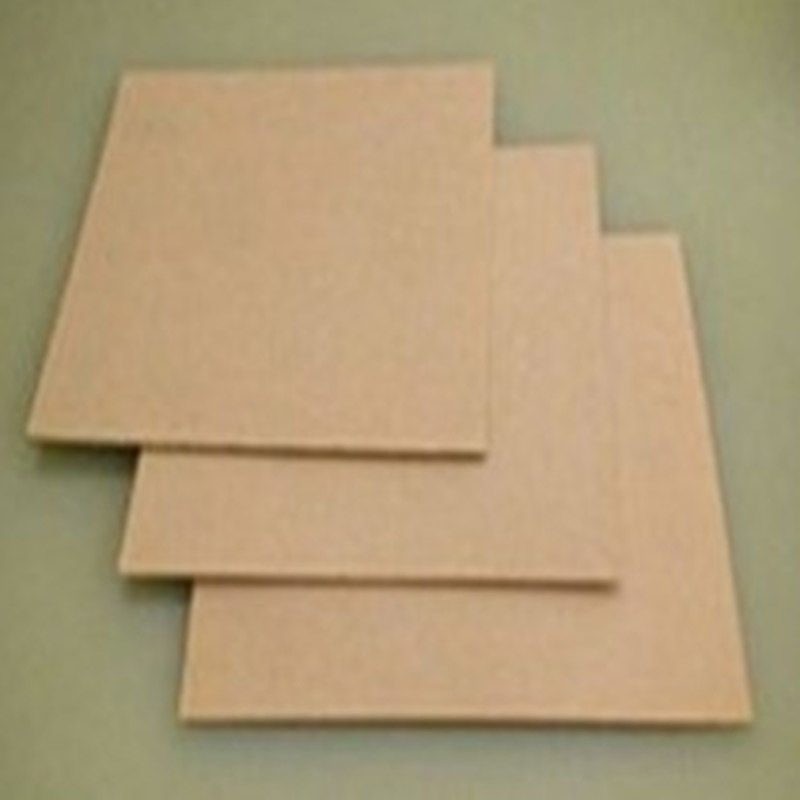

Pressboard PSP3052 (Transformer Board PSP3052) is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in electric machines, capacitors and oil-filled transformers.
零售价
0.0
Yuan
市场价
0.0
Yuan
浏览量:
1000
产品编号
数量
-
+
库存:
Product description
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Type B 3.1 in according to IEC 641-1

Description

Pressboard PSP3052 (Transformer Board PSP3052) is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in electric machines, capacitors and oil-filled transformers.



Features

Insulation class A (105 °C)

Natural-coloured

Hot-pressed Pressboard, 100 % sulphate pulp

High hardness and stiffness

Low shrinkage and compatibility

High purity and mechanical strength

Good compatibility with liquid dielectrics

Further processing is ensured since the pressboard can be punched, folded, cut and formed without difficulty.



Applications

To use as insulations material in Power and Distribution Transformers

It is the base material for components like cyclinders, strips, spacers, rings. washers, plates, machine formed and moulded parts, punchings and laminates.



Available

Thickness: 0.80mm – 4.0mm

Sheet dimension: 1000mm x 2000mm, 2100mm x 4200mm

Special dimensions on request



Technical Date



Test standard

Measured value

Standard value

Thickness tolerance

IEC 641-2

≤ 1.6 mm 6.00 %
> 1.6 - 8.0 mm 4.00 %

±7.5 %
± 5.0 %

Apparent density

IEC 641-2

≤ 1.6 mm 1.09 g/cm³
> 1.6 - 4.0 mm 1.15 g/cm³

1.00 - 1.20 g/cm³
1.10 - 1.25 g/cm³

Min. tensile strength M.D. unfolded

IEC 641-2

≤ 1.6 mm 107 N/mm²
> 1.6 - 4.0 mm 128 N/mm²

100 N/mm²
105 N/mm²

Min. tensile strength C.M.D, unfolded

IEC 641-2

≤ 1.6 mm 77 N/mm²
> 1.6 - 4.0 mm 83 N/mm²

75 N/mm²
80 N/mm²

Min. elongation M.D, unfolded

IEC 641-2

3.9 %

3.0 %

Min. elongation C.M.D, unfolded

IEC 641-2

4.1 %

4.0 %

Max. moisture content

IEC 641-2

4.2 %

6.0 %

Max. ash content

IEC 641-2

0.3 %

1.0 %

pH of aqueous extract

IEC 641-2

6.3

6.0 - 9.0

Max. shrinkage M.D

IEC 641-2

0.4 %

0.5 %

Max. shrinkage C.M.D

IEC 641-2

0.6 %

0.7 %

Max. thickness shrinkage

IEC 641-2

3.9 %

5.0 %

Min. oil absorption

IEC 641-2

≤ 1.6 mm 13.7 %
> 1.6 - 4.0 mm 10.6 %

11.0 %
9.0 %

Compressibility C

IEC 641-2

≤ 1.6 mm 9.4 %
> 1.6 - 4.0 mm 5.7 %

10.0 %
7.5 %

Revers. part of compressibility Crev

IEC 641-2

≤ 1.6 mm 54 %
> 1.6 - 4.0 mm 71 %

45 %
50 %

Min. breakdown voltage in oil

IEC 641-2

≤ 1.6 mm 50 kV/mm
> 1.6 - 4.0 mm 45 kV/mm

40 kV/mm
35 kV/mm

Max. conductivity of aqueous extract

IEC 641-2

≤ 1.6 mm 3.3 mS/m
> 1.6 - 4.0 mm 3.5 mS/m

5.0 mS/m
6.0 mS/m

These tests have been carried out on transformer board thicknesses 1.0 mm, 3.0 mm, 4.0 mm

The above values, which have been determined by careful tests, provide only general information. Our company has implemented several programs to assure the highest quality and reliability of this product. However, no responsibility is assumed for its use.
