Pressboard PSP3050 (Transformer Board PSP3050)
Category:
Transformer Field
Keywords:


DESCRIPTION
Type B 2.1.A in according to IEC 641-1
Description

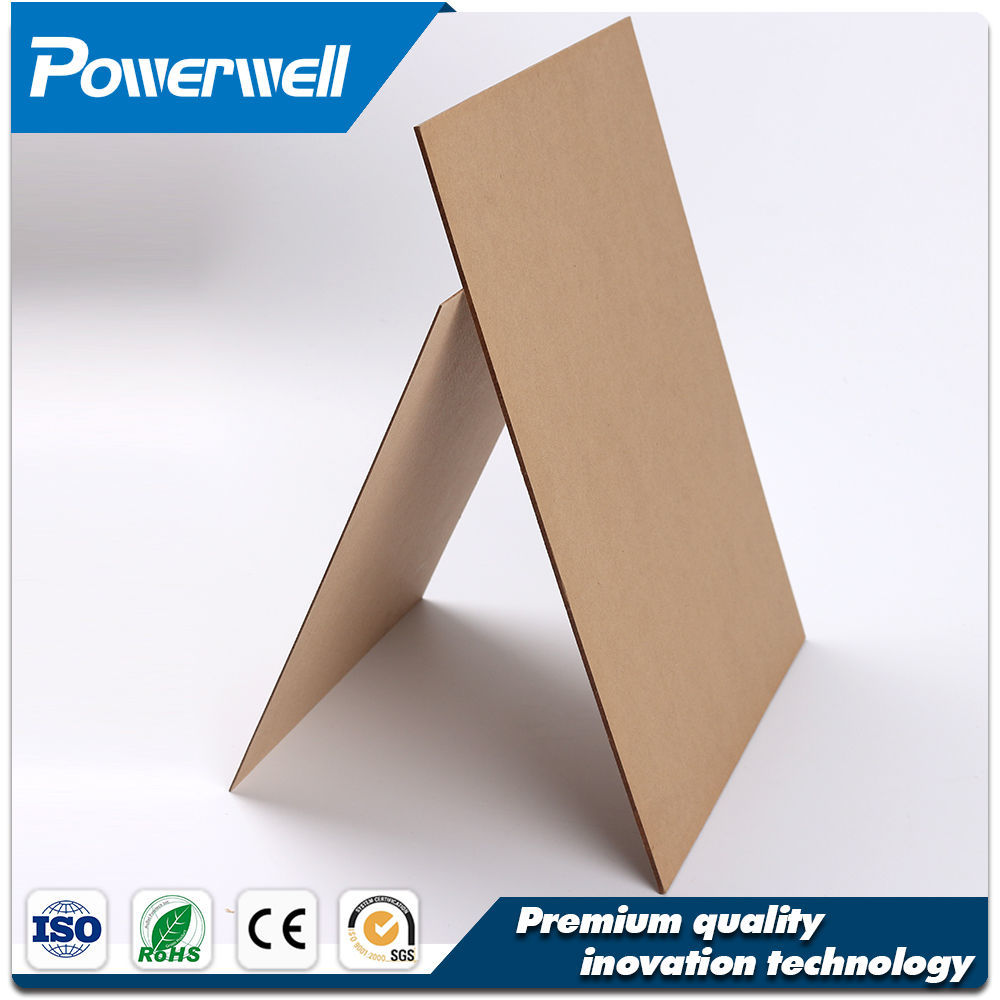

Pressboard PSP3050 (Transformer Board PSP3050) is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in electric machines, capacitors and oil-filled transformers.
Features
Insulation class A (105 °C)
Natural-coloured
Calandered Pressboard, 100% sulphate pulp
High Flexible and Soft
Low shrinkage and compatibility
High purity and mechanical strength
Good compatibility with liquid dielectrics
Further processing is ensured since the pressboard can be punched, folded, cut and formed without difficulty.
Applications
To use as insulations material in Power and Distribution Transformers
It is the base material for components like corrugated boards, cyclinders, rings and mouldable parts.
Available
Thickness: 0.80mm – 4.0mm
Sheet dimension: 1000mm x 2000mm, 2100mm x 4200mm
Special dimentions on request
Technical Date
Test standard | Measured value | Standard value | |
Thickness tolerance | IEC 641-2 | ≤1.6mm 6.00% | ±7.5% |
Apparent density | IEC 641-2 | ≤1.6mm 1.0g/cm³ | 1.00-1.20g/cm³ |
Min. tensile strength M.D. unfolded | IEC 641-2 | ≤1.6mm 75N/mm² | 70N/mm² |
Min. tensile strength C.M.D, unfolded | IEC 641-2 | ≤1.6mm 60N/mm² | 50N/mm² |
Min. elongation M.D, unfolded | IEC 641-2 | 6.5% | 6.0 % |
Min. elongation C.M.D, unfolded | IEC 641-2 | 8.1% | 8.0 % |
Max. moisture content | IEC 641-2 | 7.6% | 8.0 % |
Max. ash content | IEC 641-2 | 0.8% | 2.0 % |
pH of aqueous extract | IEC 641-2 | 6.3 | 6.0 - 9.0 |
Max. shrinkage M.D | IEC 641-2 | 0.4% | 0.5 % |
Max. shrinkage C.M.D | IEC 641-2 | 0.6% | 0.7 % |
Max. thickness shrinkage | IEC 641-2 | 3.9% | 5.0 % |
Min. oil absorption | IEC 641-2 | ≤1.6mm 13.7% | 11.0 % |
Compressibility C | IEC 641-2 | ≤1.6mm 9.4% | 10.0 % |
Revers. part of compressibility Crev | IEC 641-2 | ≤1.mm 54% | 45 % |
Min. breakdown voltage in oil | IEC 641-2 | ≤1.6mm 15kV/mm | 12kV/mm |
Max. conductivity of aqueous extract | IEC 641-2 | ≤1.6mm 3.3mS/m | 10mS/m |
These tests have been carried out on transformer board thicknesses 1.0 mm, 3.0 mm, 4.0 mm
The above values, which have been determined by careful tests, provide only general information. Our company has implemented several programs to assure the highest quality and reliability of this product. However, no responsibility is assumed for its use.
