PI 1 & PI 2 Coil insulating paper (Kraft paper manila hemp) pulp are for special manufactured from good and tough wood fiber, which are chemically neutral and well suitable for telephone cables and copper rod for transformers.

PB 1 electrical grade paper and pressboard are for special product based on pure virgin cellulose Kraft pulp and thermal upgrading for use in oil-filled power transformers.

PB 2 electric grade paper and pressboard product based on recycle Kraft cellulose pulp is used in the manufacture of laminated insulation paper for various electrical low voltage applications such as motors, fans and many more items.

Paper and pressboard PB1 and PB2 characteristics include dielectric breakdown strength, impulse strength, energy dissipation, shrinkage, tensile strength and air resistance.

I. Coil Insulating Papers JIS C 2304

1. Products

Coil insulating papers are classified by material component as in Table 1 according to JIS.

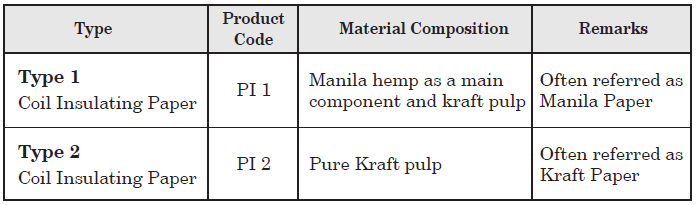

Table 1.

2. Product Specification and Properties

Table 2 shows the standard test results (JIS Approval No. 3185) of our coil insulating. paper (PI 2), where corresponding JIS are also listed for reference.

Table 2.                    Type 2 Coil Insulating Papers (PI 2) --------------Kraft Papers

Note

1. (*) marked items are not listed in JIS but are manufactured in accordance with their standards.

2. Method of test is in accordance with JIS C 2111 (Test Method for Electrical Insulating Papers).

3. Size of the product is 810mm width x Roll length.

II PAPER/PRESSBOARD JIS 2305

1. Product

Paper/Press Board are classified by material composition as Table 1 according to the JIS.

Table 1.

2. Product Specification and Propertes

Standard test results of our Paper/Press boards (JIS Approval No. 3428) are shown in the Table 2 and 3, where JIS is also listed for comparison.

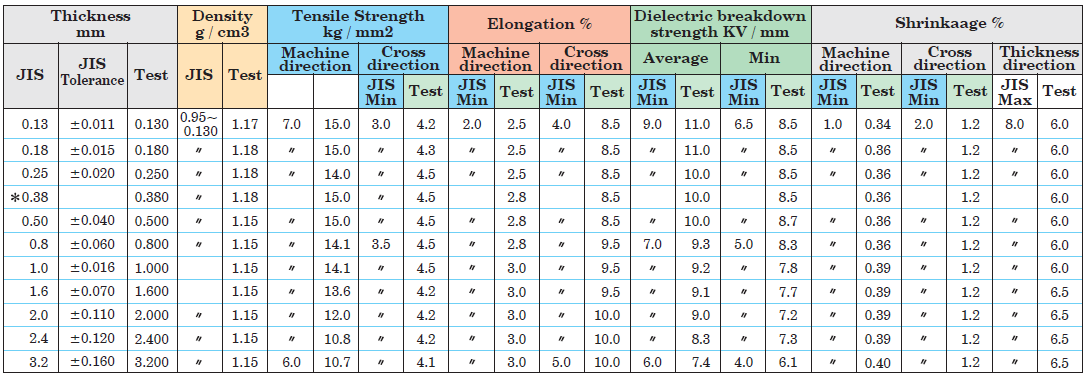

Table 2.                   TYPE 1 (PB 1)

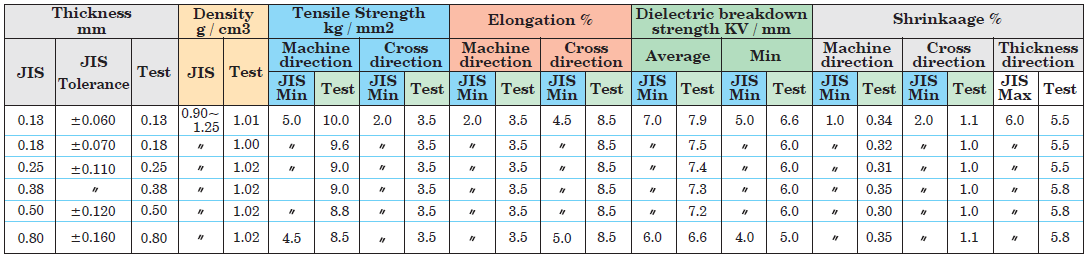

Table 3.                  TYPE 2 (PB 2)

Note

1. (*) marked items are not listed in the JIS but where manufactured in accordance with its standards.

2. Have excellent bend resistance and oil resistance characteristics. Test carried out according to the Jis C 2111 method.

3. Product measurement are 810mm width Roll (0.13mm ~ 0.5mm thickness) and 1520mm 910mm (over 0.8mm thickness).

Elevate your packaging, electrical, and thermal insulation projects with our premium Insulation Kraft Paper, engineered for reliability and sustainability. Made from 100% natural, unbleached wood pulp, this high-strength paper is both recyclable and biodegradable, offering an eco-conscious solution for industrial, commercial, and DIY applications. Its superior dielectric strength and heat resistance (up to 220°F/105°C) make it ideal for insulating wires, transformers, and electronic components, while its moisture-resistant coating safeguards against humidity and abrasion.

Perfect for wrapping fragile items, cushioning shipments, or lining surfaces, this kraft paper combines lightweight flexibility with tear-resistant durability. The natural brown finish provides a rustic aesthetic for gift wrapping or crafts, while its smooth surface ensures easy printing or labeling. Whether used in construction, automotive, or food-grade packaging, its non-toxic composition meets safety standards for direct contact with sensitive materials.

Key Features:
✔ Eco-Friendly Material – Recyclable, biodegradable, and sustainably sourced
✔ High-Temperature Resistance – Reliable insulation for electrical and thermal applications
✔ Moisture & Tear Resistance – Protects against environmental damage and handling stress
✔ Versatile Use – Ideal for packaging, insulation, crafts, and industrial lining
✔ Cost-Effective – Reduces waste and replaces single-use plastics

With a gsm range of 60-150 (customizable upon request), this insulation kraft paper adapts to lightweight or heavy-duty needs. Its neutral pH prevents corrosion in metal packaging, and the FSC-certified sourcing ensures ethical production. Easy to cut, fold, or layer, it’s a must-have for electricians, shippers, artisans, and eco-aware businesses.

Why Choose Our Insulation Kraft Paper?
- Consistent Quality: Uniform thickness for predictable performance.
- Wide Compatibility: Works with adhesives, laminates, and coatings.
- Storage-Friendly: Resists yellowing and retains integrity over time.

Upgrade to a greener, smarter material solution. Order now and experience the balance of practicality, durability, and environmental responsibility!
