Fiberglass Yarn
Category:
Others
Keywords:
DESCRIPTION
Description

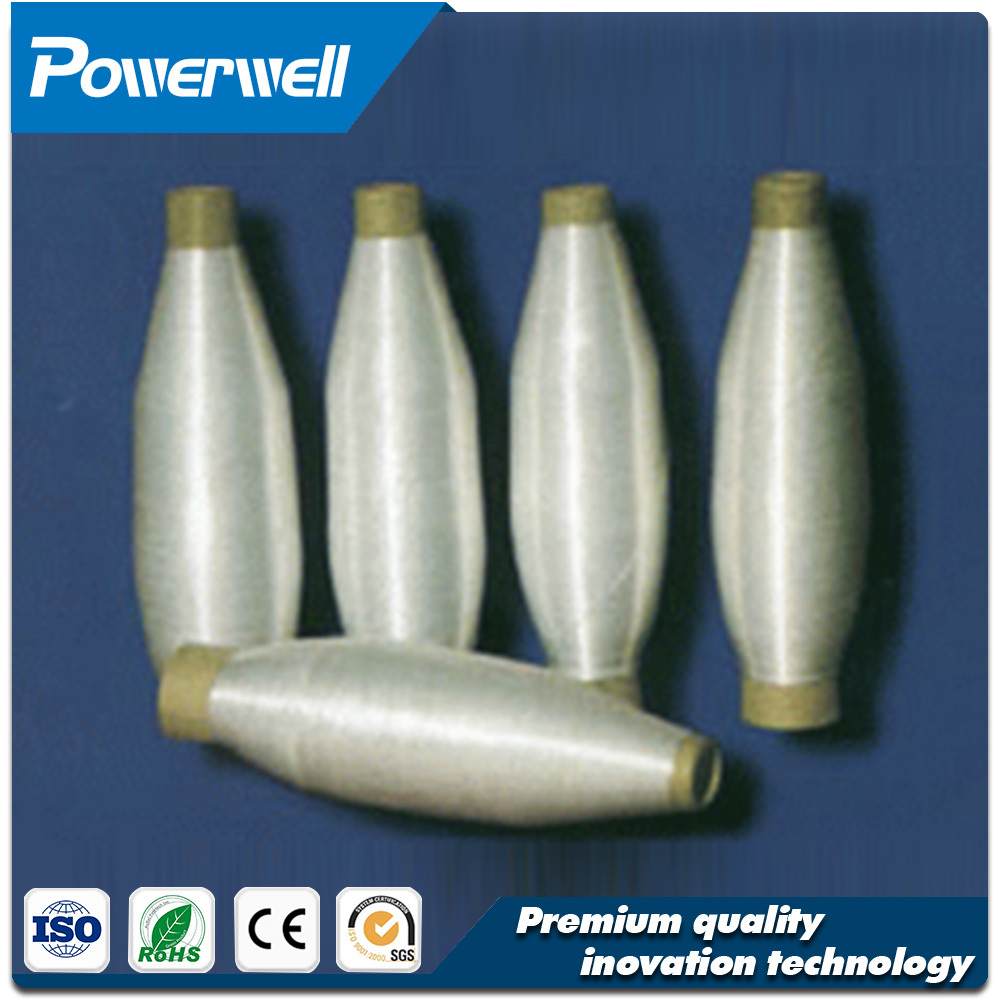

Fiberglass Yarn is made from many 4-13 micron fiberglass filament which are then gathered and twisted into one finished yarn. It is widely used in production of fabrics as finished well as electrical wrapping material. Theindividual requirement of any fabric shall be satisfied by adjusting filament diameter, tex No. Yarn twist and No. of plied yarn as well.
Product and packing type
Packed with small paper bobbin. Net weight 1.5kgs. Spec. are ECD900, ECD450, ECE450, ECG150. ECE225. coated with parrafin wax resin. for electrical insualtion purpose.
Packed with big plastic bottle bobbin. Net weight 7-8 kgs. Spec. are ECG150, ECE225, ECG75, ECG37, ECD450 coated with starch oil or silane finish. for weaving textile for PCB industries and industrial textile.
|
Fiberglass Style |
Twist |
Weight-Length Ratio |
|||
|
Count Designation |
Tex Designation |
TPI |
TPM |
Yd/Lb |
G/Km |
|
ECD900 1/0 |
EC5. 6 1 x 0 |
1.0z |
Z40 |
90,000 |
5.5 |
|
ECD450 1/0 |
EC5 11 1 x 0 |
1.0sz |
Z40 |
45,000 |
11.0 |
|
ECD450 1/2 |
EC5 11 1 x 2 |
3.0S |
S120 |
22,500 |
22.0 |
|
ECE225 1/0 |
EC7 24 1 x 0 |
1.0z |
Z40 |
10,000 |
24.0 |
|
ECE225 1/2 |
EC7 24 1 x 2 |
3.0S |
S120 |
5,000 |
48.0 |
|
ECG150 1/0 |
EC9 34 1 x 0 |
0.7z |
Z28 |
15,000 |
33.0 |
|
ECG150 1/2 |
EC9 34 1 x 2 |
3.0s |
S120 |
7,500 |
66.0 |
|
ECG75 1/2 |
EC9 66 1 x 2 |
3.8s |
S150 |
3,750 |
132.0 |
|
ECG75 1/0 |
EC9 66 1 x 0 |
0.7z |
Z28 |
7,500 |
66.0 |
|
ECG371/0 |
EC9 136 1 x 0 |
0.7z |
Z28 |
3,750 |
136.0 |
|
ECG371/2 |
EC9 136 1 x 2 |
3.8S |
S150 |
2,870 |
272.0 |
